2R1G1B PH12 led screen billboard truck Mounted Installation , led display trailer

Product Categories

Shenzhen SRYLED Photoelectric Co., Ltd

Contact Now

2R1G1B PH12 led screen billboard truck Mounted Installation , led display trailer

Name: 2R1G1B PH12 led screen billboard truck Mounted Installation led display trailer
Brand: SRYLED
Price: 560 USD

China 2R1G1B PH12 led screen billboard truck Mounted Installation , led display trailer wholesale

Brand Name : SRYLED

Model Number : SRY - OFS - P12

Certification : CE, LVD, RoHS

Place of Origin : Shenzhen, China

MOQ : 1sqm

Price : US$ 560 - 720 / Square Meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal

Supply Ability : 3,000 Square Meters per Month

Delivery Time : 10 - 12 work days

Packaging Details : Plywood Case( case size: based on cabinet quantity and size)

Pixel Pitch : 12mm

Module Size : 192mm x 192mm

Control Way : Sychronous

Waterproof : IP65

Best viewing distance : 12m - 120m

Refresh Rate : 2,000HZ

Contact Now

2R1G1B PH12 led screen billboard truck Mounted Installation , led display trailer

Decription:

1. Easy maintenance, front and rear maintenance are available

2. Widely application area, such as main screen, side screen, floor screen curved screen

3. Die casting aluminum cabinet design, saves 40% steel structure

4. Hollow design, wind resistant and great heat dissipation

5. Outdoor and indoor cabinets and modules are compatible with each other

Specification:

Pixel Pitch	12mm
Pixel Density	6,944dots/sqm
Tube Chip Color	Full Color
Color Configuration	2R1G1B
LED Encapsulation	DIP346
Module Size	192mm x 192mm
Module Resolution	16dots x 16dots
Cabinet Size	960mm x 960mm
Cabinet Resolution	80dots x 80dots
Drive Duty	1/4 Constant Current
Brightness	>7,500nits
Viewing Distance	12m -120m
Viewing Angle	H: 120°, V:70°
Refresh Rate	2,000HZ
Frame Rate	120frame/sec
Grey Grade	256levels of Each Color
Color Grade	16.7M
Power Input	AC110V/ 220V/ 50HZ
Max Power Consumption	520W/sqm
Ave. Power Consumption	1750W/sqm
Storage Temperature	-40℃ - +80℃
Working Temperature	-20℃ - +60℃
Blind Spot Rate	<1/10000
MTBF	>10,000 Hours
Life Span	>100,000 Hours
Waterproof	IP65
Cabinet Weight	45kg
Operating Humidity	10% - 95%
Control System	Synchronous, Asynchronous
Operating System	Win 98, Win2000, XP, 07.etc
Input Source	All Format (AVI, MPEG,VOB, RM, etc)
Certificate	CE, LVD, RoHS

Features:

1. Light weight and slim design, 45kg/cabinet, cabinet size is 960mm x 960mm

2. Quick and easy, 10 seconds for assembling 2 cabinets without any tools

3. Floor screen can bear 1 ton of weight and IP 65 protection level

4. Energy saving and environmental friendly

5. Capability to control the gap between cabinets

Application:

Vehicle, truck, trailer, pickup car and etc mounted use for advertising

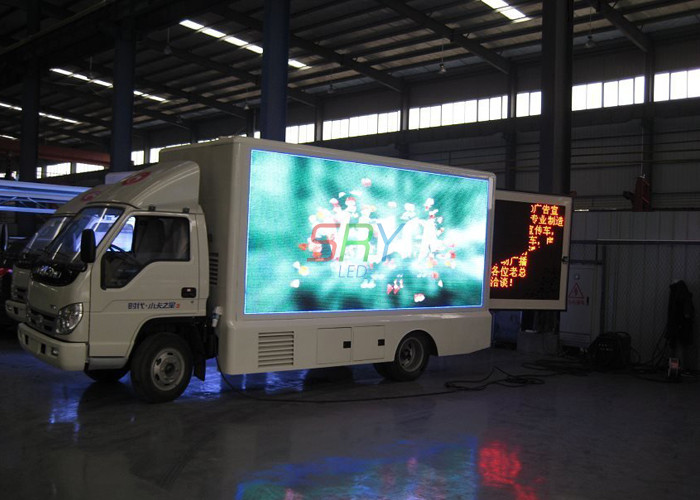

Application Pictures:

2R1G1B PH12 led screen billboard truck Mounted Installation , led display trailer

Competitive Advantages:

1. Low power consumption

2. Seamless splice design

3. Super slim cabinet design

4. Super light cabinet design

Product Tags:

truck mounted led display

led truck advertising

2R1G1B PH12 led screen billboard truck Mounted Installation , led display trailer Images
